How to model a gutter on a sloping roof edge – Revit

Last updated July 29, 2026

Problem: Revit ‘Roof: Gutter’ tool only works on horizontal edges. How do I model a gutter on a sloping roof edge? For example a skillion roof with a 45 degree edge.
Applies to: Revit 2014. but probably applies to all previous versions too.
Solution: Use ‘Model In-Place’ with a sweep and use “Pick 3D Edges”.
Step-by-step guide:

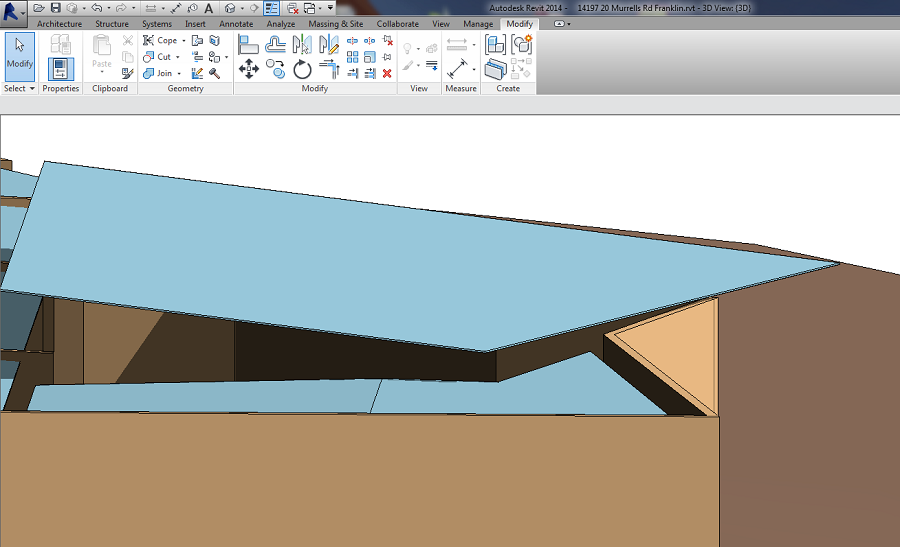

Revit 3D view of a skillion roof, shown in blue, sloping over brown walls with a 45 degree edge - the roof this gutter will be added to
Step 1: Model your roof, in this example a skillion roof with 45 degree edge

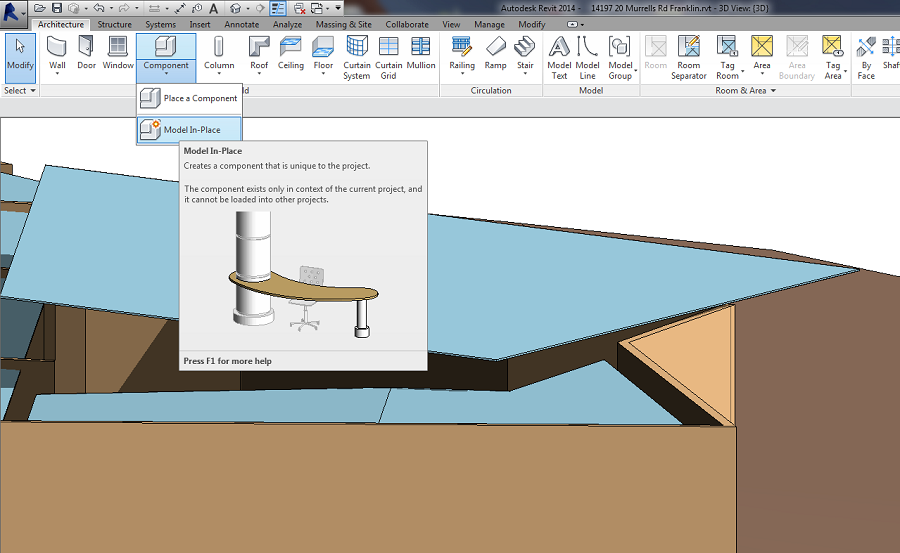

Revit Architecture ribbon with the Component drop-down open, showing Place a Component and Model In-Place, and the Model In-Place tooltip explaining it creates a component unique to the project
Step 2: Architecture Ribbon > Component > Model In-Place

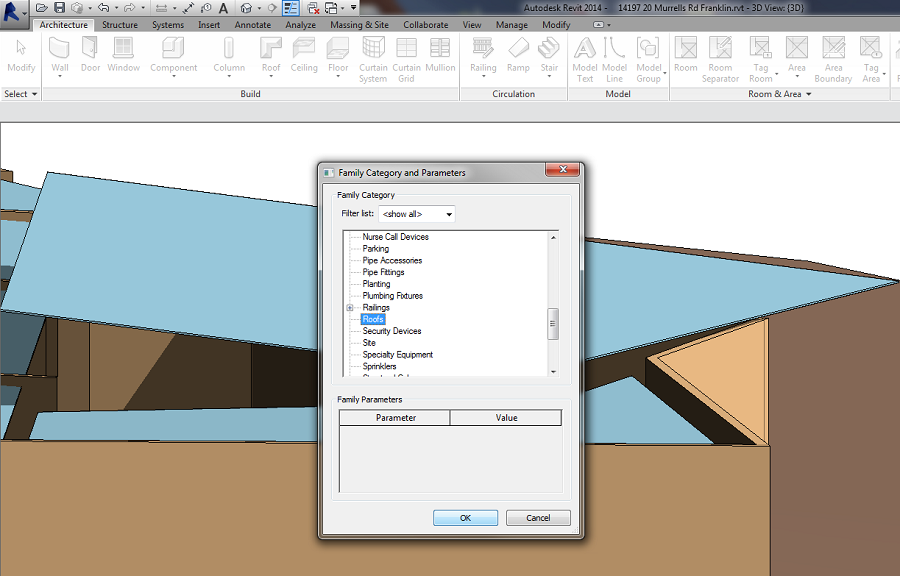

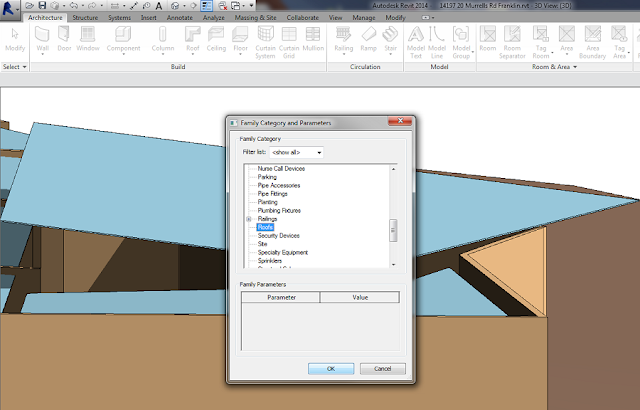

Revit Family Category and Parameters dialog with Roofs selected in the category list
Step 3: Select ‘Roofs’ category

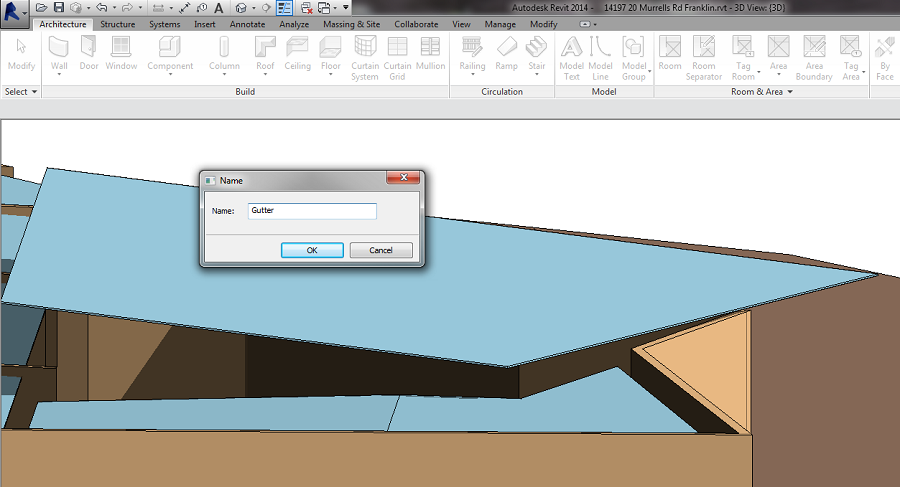

Revit Name dialog with Gutter typed into the name field
Step 4: Type ‘Gutter’

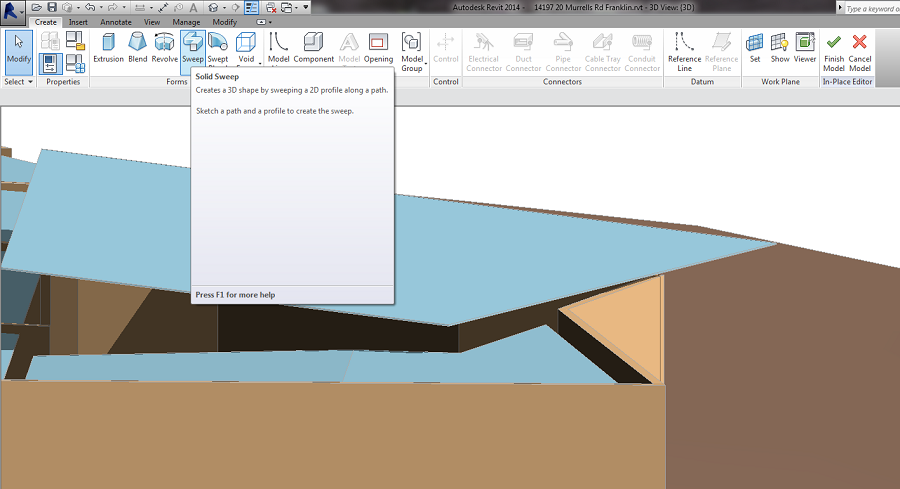

Revit in-place editor Create ribbon with the Sweep tool hovered, tooltip reading Solid Sweep - creates a 3D shape by sweeping a 2D profile along a path
Step 5: Create Ribbon > Sweep

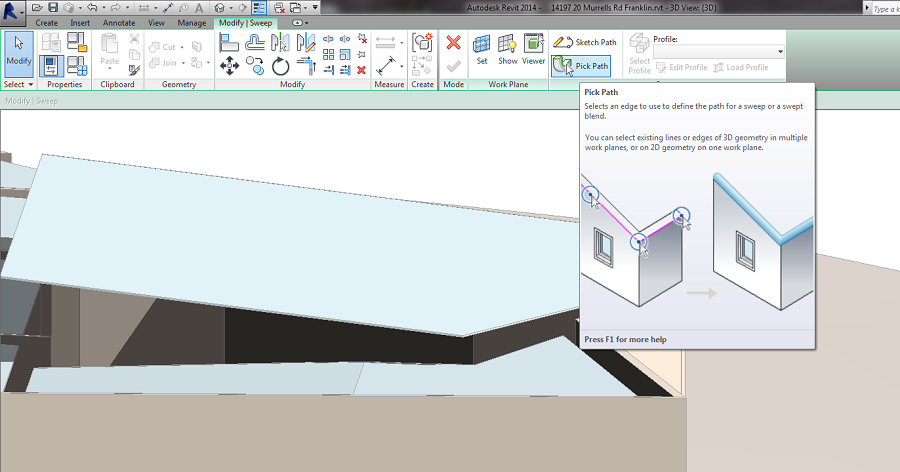

Revit Modify Sweep ribbon with Pick Path hovered, tooltip explaining you can select edges of 3D geometry in multiple work planes to define the sweep path
Step 6: Modify Sweep Ribbon > Pick Path

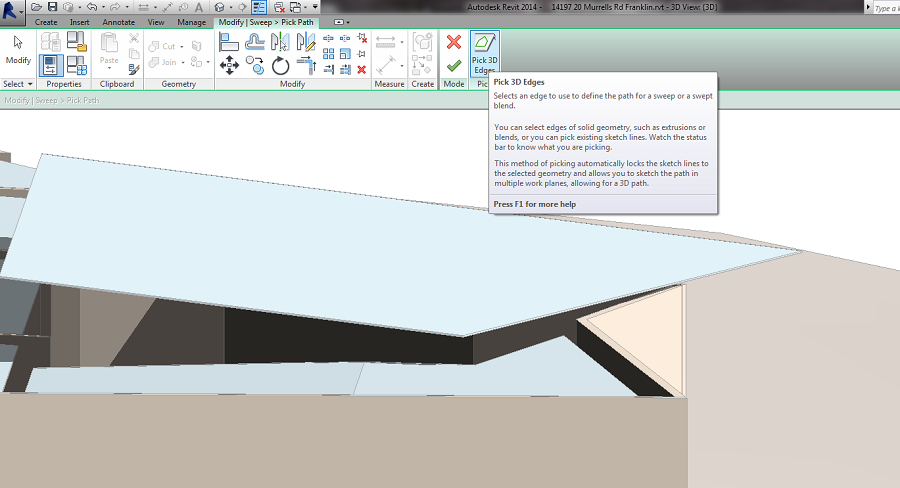

Revit Modify Sweep, Pick Path ribbon with Pick 3D Edges hovered, tooltip explaining it locks sketch lines to the selected geometry so a 3D path can be sketched
Step 7: Modify Sweep Ribbon > Pick Path > Pick 3D Edges

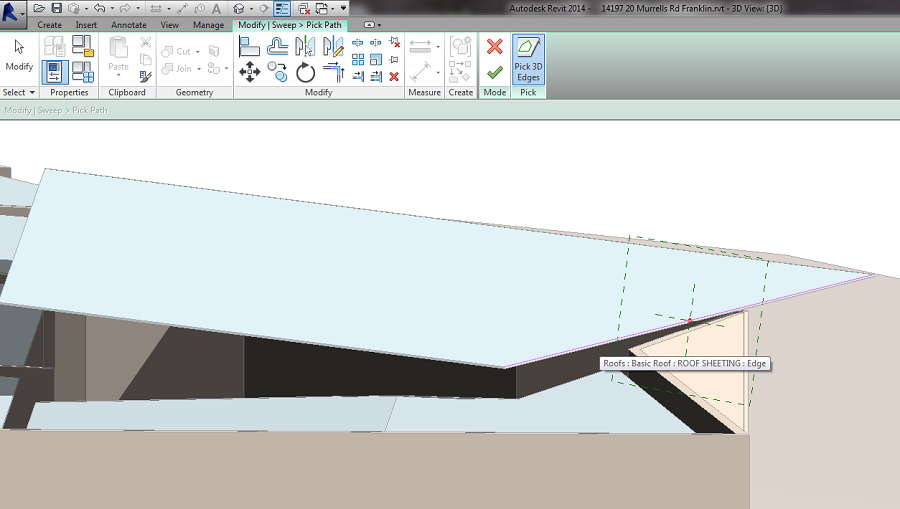

The sloping roof edge highlighted in Revit with the status tip reading Roofs: Basic Roof: ROOF SHEETING: Edge, showing the edge being picked for the gutter path
Step 8: Pick the edge of your roof where gutter to be located

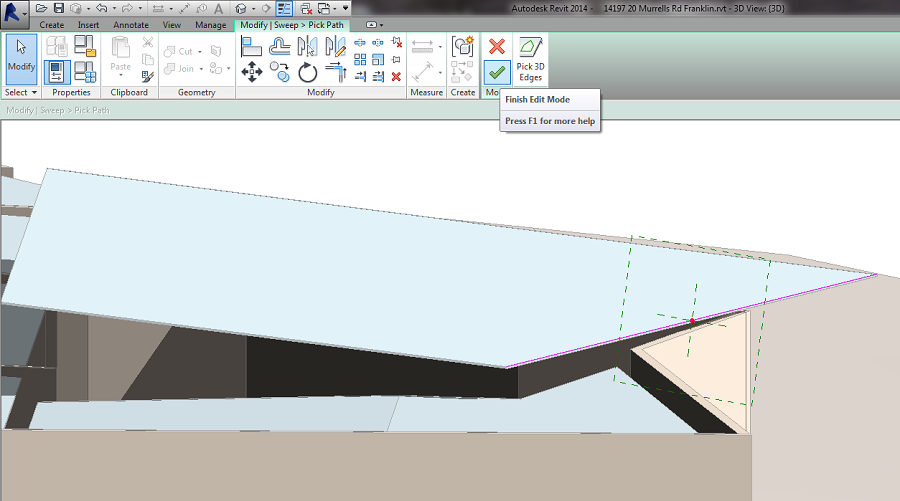

Revit Modify Sweep, Pick Path ribbon with the green tick hovered, tooltip reading Finish Edit Mode, and the picked roof edge highlighted along the eave
Step 9: Click green tick

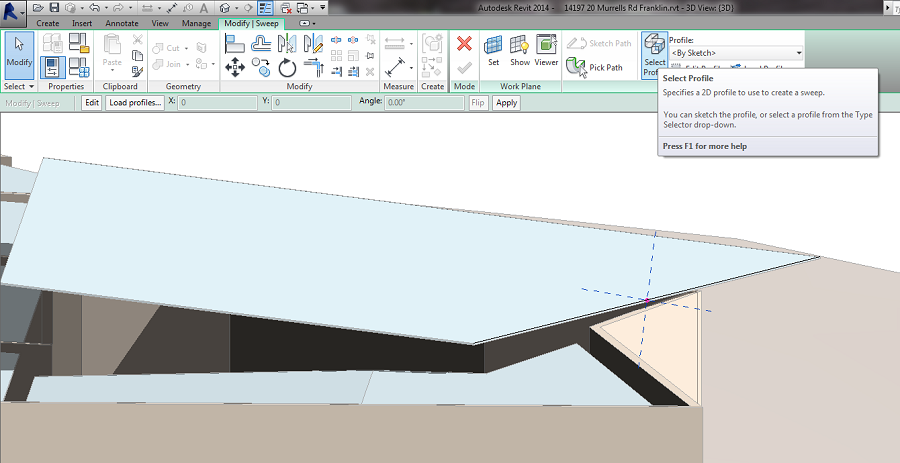

Revit Modify Sweep ribbon with Select Profile hovered, tooltip explaining you can sketch a profile or choose one from the Type Selector drop-down
Step 10: Modify Sweep Ribbon > Select Profile

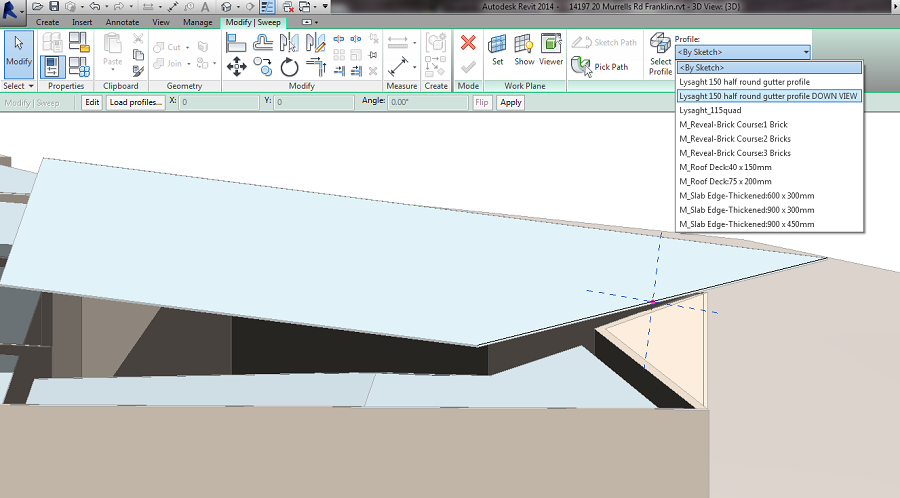

The Revit profile drop-down open, listing Lysaght 150 half round gutter profile and its DOWN VIEW variant among the loaded profile families
Step 11: Modify Sweep Ribbon > Select Profile > Pick your gutter profile. Download the profiles used in this tutorial; Lysaght 150 half round gutter profiles.zip

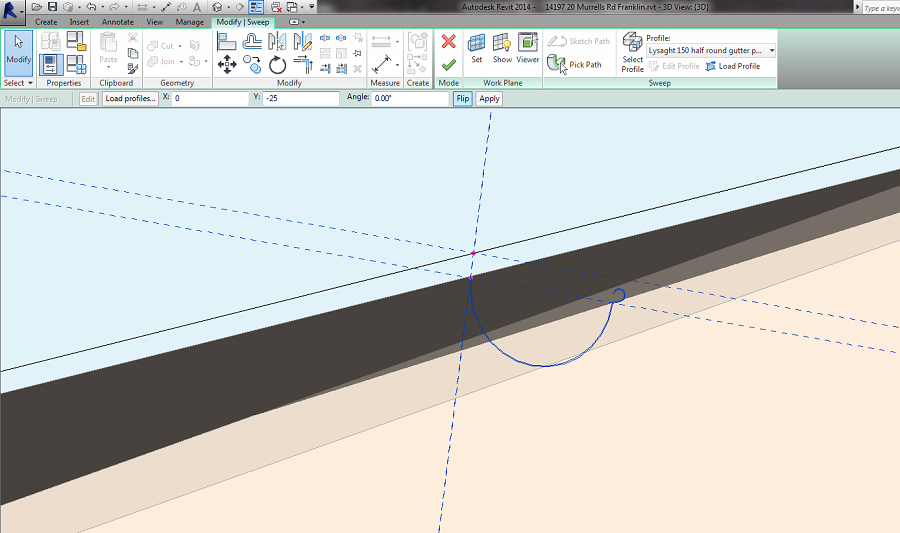

Close view of the half round gutter profile swept along the roof edge in Revit, with the X and Y offset fields and the Flip button visible on the options bar
Step 12: Adjust the X and Y position to suite. Use flip button to get the gutter showing the correct way up

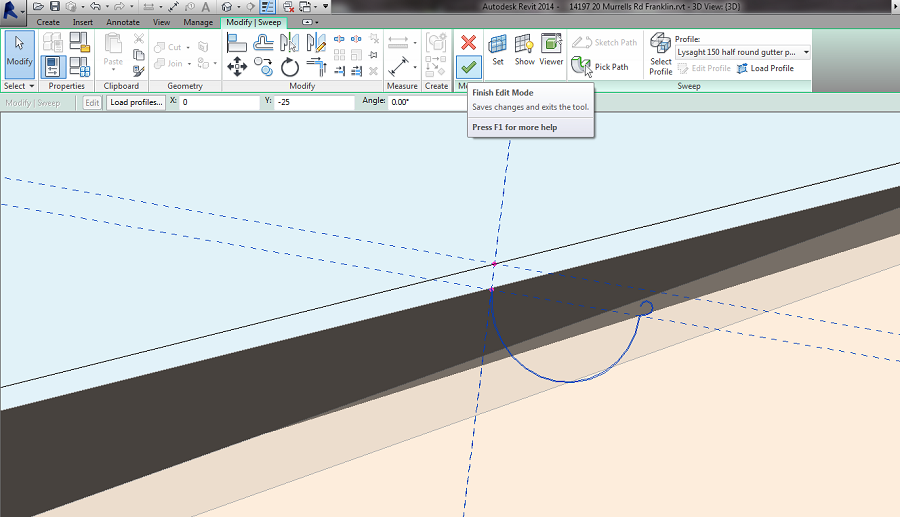

Revit Modify Sweep ribbon with the green tick hovered, tooltip reading Finish Edit Mode - saves changes and exits the tool - and the gutter profile in place on the edge
Step 13: Click green tick

The finished half round gutter running along the sloping edge of the skillion roof in the Revit 3D view, with the Finish Model tooltip open to exit the Model In-Place tool

Step 14: Click green tick to finish model
