Brick Bond Hatch Patterns – 12 Free .PAT Downloads

July 26, 2026

Twelve traditional brick bonds, each one a separate download so you can take only the bond you need. Every pattern below is shown as it will hatch, and the bonds are the real thing – English, Flemish, common, garden wall and their cross and diaper variants, as they have been laid for centuries. These are the patterns that make a brick elevation read as brickwork rather than as a grid of rectangles.

Each pattern is a separate download containing a single .PAT file — take the one you need rather than a whole library. Back to the full hatch pattern library.

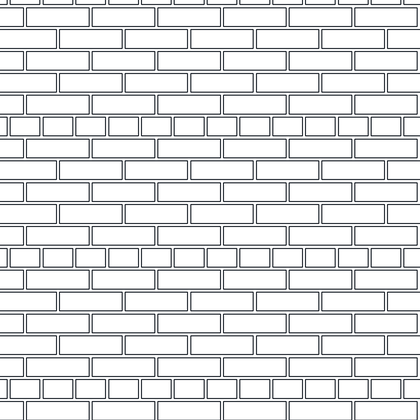

Common bond (American bond) AutoCAD hatch pattern preview

Common bond (American bond)

Stretcher courses with a full header course every sixth course to tie the wall together. A practical compromise between the speed of running bond and the strength of English bond.

Pattern name COMMON. Download the .PAT file

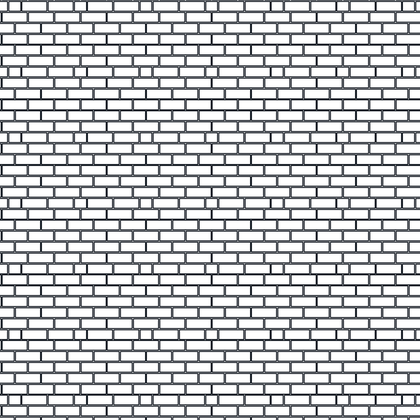

Common bond - fine coursing AutoCAD hatch pattern preview

Common bond – fine coursing

The same sixth-course header arrangement drawn at a much finer module, for elevations at small scale where the standard pattern would fill in solid.

Pattern name COMMONF. Download the .PAT file

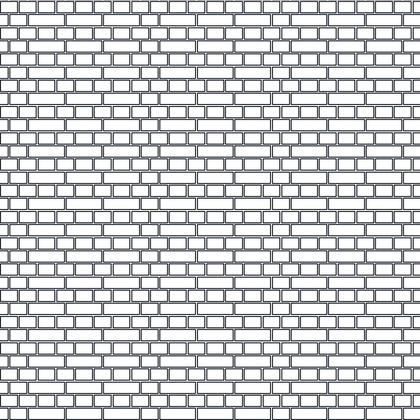

English cross bond AutoCAD hatch pattern preview

English cross bond

English bond with each stretcher course shifted half a brick, so the headers step diagonally across the wall and form a subtle cross figure.

Pattern name CROSSENG. Download the .PAT file

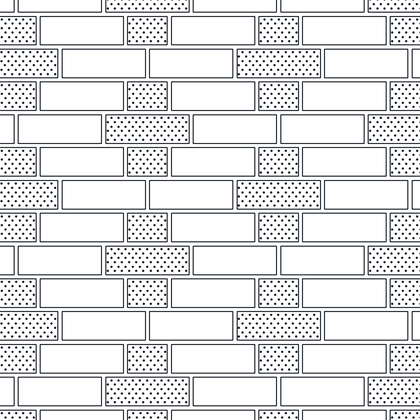

Flemish cross bond AutoCAD hatch pattern preview

Flemish cross bond

Flemish bond with the headers picked out by hatching, forming the diagonal cross figure used in decorative diaper brickwork. For feature panels and heritage elevations.

Pattern name CROSSF. Download the .PAT file

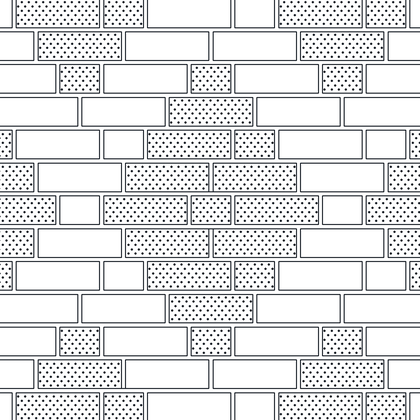

Diagonal Flemish bond (diaper) AutoCAD hatch pattern preview

Diagonal Flemish bond (diaper)

Flemish bond with contrasting headers arranged into a bold diamond diaper across the wall face. The most decorative bond here – use it where the brickwork is meant to be noticed.

Pattern name DIAGONAL. Download the .PAT file

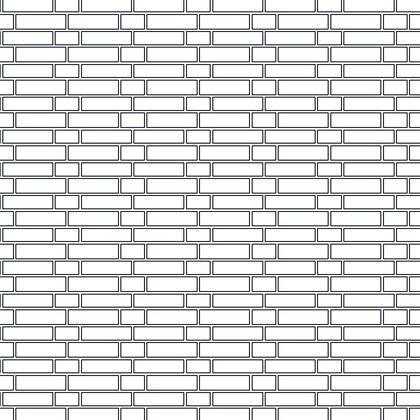

Flemish double stretcher bond AutoCAD hatch pattern preview

Flemish double stretcher bond

Two stretchers between each header rather than one, stretching the Flemish rhythm out horizontally. Common in garden and boundary walls.

Pattern name DOUBLE. Download the .PAT file

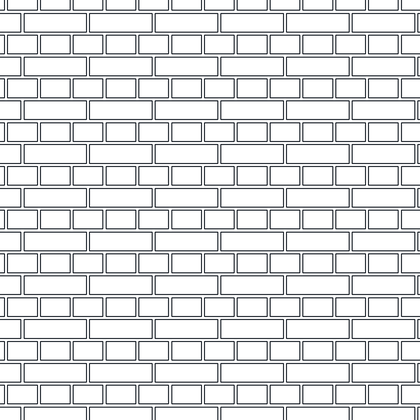

English bond AutoCAD hatch pattern preview

English bond

Alternating courses of headers and stretchers. One of the strongest traditional bonds and common in older solid walls, engineering brickwork and retaining structures.

Pattern name ENGLISH. Download the .PAT file

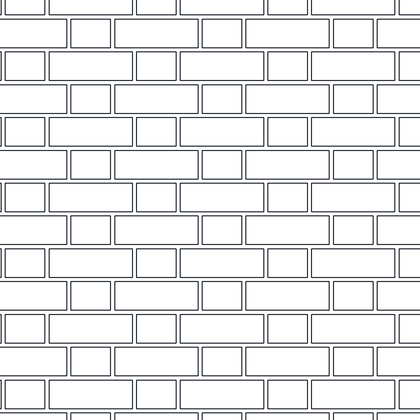

Flemish bond AutoCAD hatch pattern preview

Flemish bond

Headers and stretchers alternating within every course, so each header sits centred over the stretcher below. The classic decorative face bond of Georgian and Victorian work.

Pattern name FLEMISH. Download the .PAT file

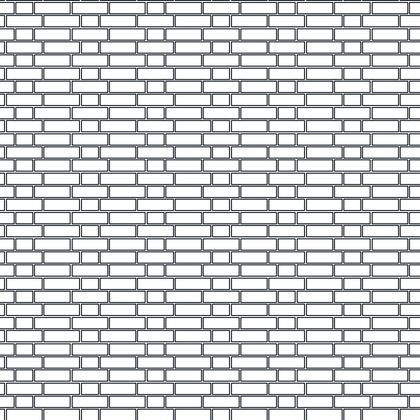

Garden wall bond AutoCAD hatch pattern preview

Garden wall bond

Three stretchers to every header – the economical bond traditionally used for garden and boundary walls, where a fair face was wanted on both sides without the cost of full Flemish work.

Pattern name GARDEN. Download the .PAT file

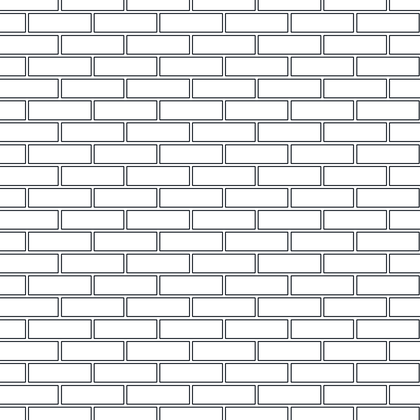

Running bond (stretcher bond) AutoCAD hatch pattern preview

Running bond (stretcher bond)

The everyday bond: all stretchers, each course lapped half a brick over the one below. This is what most modern cavity walls and brick veneer look like, and it is the bond to reach for unless the drawing says otherwise.

Pattern name RUNNING. Download the .PAT file

Stack bond AutoCAD hatch pattern preview

Stack bond

No lap at all: every perpend lines up in a continuous vertical joint. Structurally weak, so it appears as a modern facing pattern over a backing wall rather than as load-bearing brickwork.

Pattern name stack. Download the .PAT file

Third running bond AutoCAD hatch pattern preview

Third running bond

Running bond lapped one third of a brick instead of one half, giving a stepped diagonal emphasis to the courses. A quiet alternative when a half-lap looks too regular.

Pattern name THIRDRUN. Download the .PAT file

Installing these patterns

Unzip the download and put the .PAT file somewhere AutoCAD searches — the support file search path under OPTIONS > Files is the simplest place.
Run HATCH, set the pattern type to Custom and pick the pattern by name.
Adjust the hatch scale to suit your drawing scale. If the hatch fills solid the scale is too small; if nothing appears it is too large.

These work in Revit as fill patterns too — see creating custom hatch patterns in AutoCAD and using them in Revit.
